Introduction

Databricks is a cloud-based data engineering platform that simplifies big data and artificial intelligence (AI) workloads. Built on Apache Spark, Databricks provides a unified analytics platform with robust data processing, machine learning, and business intelligence (BI) capabilities. It is widely used for large-scale data processing and advanced analytics.

In this article, we will explore the Databricks architecture, its core components, and how it efficiently processes large datasets in cloud environments. We will also explain the Databricks architecture diagrams in detail.

1. Databricks Standard Architecture

Databricks follows a two-layer architecture:

1. Control Plane
2. Data (or Compute) Plane

This architecture ensures security, scalability, and flexibility by separating data management and computation processes.

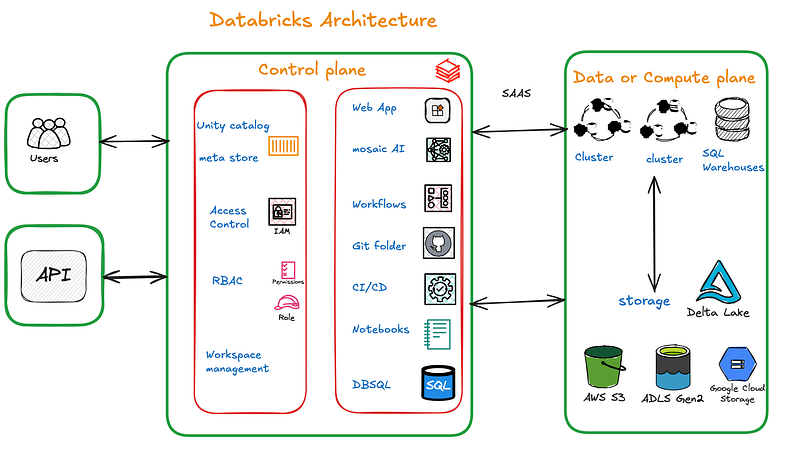

Standard Databricks Architecture with customer-managed compute

This is the classic Databricks architecture, where the Control Plane is fully managed by Databricks, while the Compute Plane is hosted in your cloud environment (AWS, Azure, or Google Cloud).

1.1 Control Plane

The Control Plane is responsible for managing user access, workspaces, job scheduling, and metadata storage. It operates as Software as a Service (SaaS) and is fully managed by Databricks.

Key Components:

1.Unity Catalog & Meta Store:

• Unity Catalog enables data governance, access control, and lineage tracking.
• The Meta Store stores metadata like table structures, schemas, and partitions.

2. Access Control & Security:

• IAM (Identity and Access Management): Manages user identities and permissions.
• RBAC (Role-Based Access Control): Assigns roles for secure data access.

3. Workspace Management:

• Provides an interface to manage notebooks, clusters, jobs, and assets.
• Organizes projects and permissions within Databricks.

4.Web Applications & AI Tools:

• Mosaic AI: A suite of AI/ML tools for advanced analytics.
• Workflows: Automates job execution for data pipelines.

5.Git & CI/CD Integration:

• Supports Git repositories for version control.
• Enables CI/CD workflows for deployment.

6.Notebooks & DBSQL

• Notebooks support Python, Scala, SQL, and R for collaborative coding.
• DBSQL (Databricks SQL): A serverless SQL engine optimized for big data queries.

1.2 Compute Plane

The Compute Plane is where actual data processing and storage happens. Unlike the Control Plane (managed by Databricks), the Compute Plane is hosted inside the customer’s cloud environment (AWS, Azure, or Google Cloud).

Key Components:

1.Compute Clusters:

• Databricks processes large datasets efficiently using clusters.
• Clusters auto-scale based on workload needs.
• Supports Apache Spark and SQL Warehouses for execution.

2.Storage & Data Lake: Databricks integrates with multiple cloud storage solutions.

• Delta Lake: ACID transactions and time-travel queries.
• AWS S3: Cloud storage for structured/unstructured data.
• Azure ADLS Gen2: Microsoft’s cloud data storage.
• Google Cloud Storage: Scalable storage for analytics.

2.Databricks Serverless Architecture

In serverless mode, Databricks manages both the control and compute planes. You don’t need to handle clusters or storage infrastructure, as Databricks fully hosts the environment.

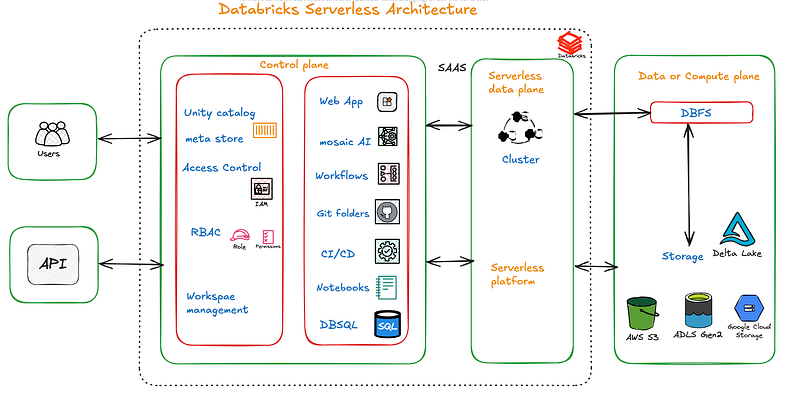

Databricks Serverless Architecture where compute is managed by Databricks

1.Serverless & Auto-Scaling Capabilities

Databricks automatically provisions resources based on demand, optimizing cost and performance.

• Auto-scaling adjusts compute power dynamically.
• Serverless SQL runs queries without managing infrastructure.

2.DBFS vs Cloud Object Storage

• In standard architecture, Databricks File System (DBFS) is used as an abstraction over cloud storage.
• In serverless mode, cloud object storage (S3, ADLS, or GCS) is directly used, improving efficiency.

3. Databricks Workflow: How It All Connects

This section explains the Databricks workflow, connecting all components.

1. Users & APIs interact with Databricks via the web UI or API.
2. The Control Plane manages authentication, job scheduling, and metadata storage.
3. The Compute Plane provisions clusters and processes data when jobs run.
4. The results are stored in Delta Lake, AWS S3, ADLS, or Google Cloud Storage.
5. Users analyze data using SQL queries, Notebooks, or AI models.

4. Benefits of Databricks Architecture

4.1 Scalability

• Supports auto-scaling of clusters based on workload.
• Handles massive datasets efficiently.

4.2 Unified Data Management

• Combines data engineering, machine learning, and business intelligence in one platform.

4.3 Security & Compliance

• Provides RBAC, IAM, and data governance with Unity Catalog.

4.4 Cost Efficiency

• Optimizes resources with serverless SQL & auto-scaling.
• Reduces operational overhead with managed infrastructure.

4.5 Multi-Cloud Support

• Works on AWS, Azure, and Google Cloud.
• Ensures flexibility in cloud adoption.

4.6 High-Performance Computing

• Uses distributed computing with Apache Spark.
• Provides in-memory caching for faster queries.

4.7 Simplified Collaboration

• Supports real-time teamwork via shared notebooks.
• Works with multiple languages (Python, Scala, SQL, R).

5. Use Cases of Databricks

Databricks is widely used in different industries:

1.Financial Services:

• Fraud detection using ML models.
• Real-time risk analysis in stock markets.

2.Healthcare & Life Sciences:

• Genomic data processing for research.
• Predictive analytics for disease detection.

3.Retail & E-Commerce

• Customer behaviour analysis and recommendation engines.
• Supply chain optimization.

4.Manufacturing

• IoT data processing for predictive maintenance.
• Quality control analysis using AI/ML.

5.Telecommunications

• Network performance monitoring.
• Churn prediction for customer retention.

6. Conclusion

Databricks provides a robust and scalable architecture for managing big data workloads efficiently.

• The Control Plane manages access, metadata, and job scheduling.
• The Compute Plane executes data processing using clusters and SQL Warehouses.
• Cloud storage integration, AI tools, and SQL analytics simplify big data processing.

Whether using standard or serverless architecture, Databricks offers a scalable, secure, and cloud-native analytics solution.

For data engineers, analysts, and AI/ML practitioners, Databricks is a powerful tool for handling complex data challenges.
