In today’s fast-paced data ecosystem, the ability to process real-time data efficiently is key to driving informed decision-making and maintaining a competitive edge. Our recently concluded workshop, Mastering Real-Time Data Pipelines: API Integration with Apache Airflow and PostgreSQL, provided an in-depth, hands-on approach to building scalable and dynamic data pipelines that can manage the flow of data in real time. This article recaps the workshop, outlines the agenda, and delves into a detailed, step-by-step process for constructing these pipelines.

Workshop Agenda

1. Introduction to Data Pipelines
2. Key Technologies Overview
3. Real-Time Data Pipeline Architecture
4. Apache Airflow: Key Concepts
5. Hands-On Session: Building the Pipeline
6. Real-World Use Case
7. Best Practices and Optimization Tips
8. Q&A and Wrap-up

Introduction to Data Pipelines

A data pipeline is an essential framework that automates the movement of data between systems, from extraction to transformation and loading (ETL). These pipelines often require real-time capabilities for modern use cases such as financial transactions, IoT applications, and real-time analytics dashboards.

Real-time data pipelines ingest continuous streams of data, ensuring that it is processed and made available for users and applications as soon as it’s generated. This is vital for applications where immediate decision-making is required, such as stock trading, online fraud detection, and IoT monitoring systems.

Key Technologies Overview

To construct an effective real-time data pipeline, we leverage the following key technologies:

• API (Application Programming Interface): APIs allow systems to communicate and retrieve real-time data. This workshop focused on integrating REST APIs to fetch data from external sources.
• Apache Airflow: Airflow is a widely-used orchestration tool that helps automate, schedule, and monitor workflows. It excels in managing complex workflows with task dependencies and fault tolerance, making it ideal for real-time data pipelines.
• PostgreSQL: As a powerful open-source relational database system, PostgreSQL offers efficient data storage and querying capabilities, making it a reliable destination for processed data from the pipeline.

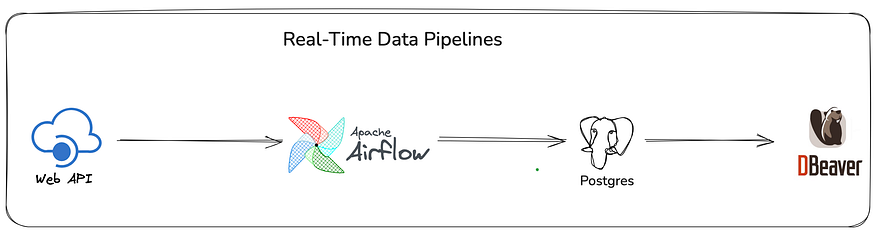

Real-Time Data Pipeline Architecture

The architecture of a real-time data pipeline involves multiple stages, including data retrieval, transformation, and storage. In this workshop, we used Apache Airflow to orchestrate the flow of data:

1. Fetching data from an API: We retrieved data from an external API using Airflow’s SimpleHttpOperator.
2. Transforming the data: The data was processed and cleaned using the PythonOperator.
3. Loading data into PostgreSQL: The processed data was inserted into a PostgreSQL database using PostgresOperator.

This architecture ensures a smooth flow from data extraction to transformation and storage, with Airflow acting as the orchestrator that automates and monitors each step.

Apache Airflow: Key Concepts

Before diving into the hands-on session, we introduced core concepts of Apache Airflow that were applied during the workshop:

• DAG (Directed Acyclic Graph): Airflow workflows are represented as DAGs, which consist of tasks that run in a specified order based on dependencies.
• Operators:
• HttpOperator: To make API requests and fetch data.
• PythonOperator: To process and clean the fetched data.
• PostgresOperator: To insert the transformed data into PostgreSQL.
• Scheduling: Airflow allows workflows to be scheduled at regular intervals (e.g., every hour or once a day), making it ideal for continuous real-time data ingestion and processing.

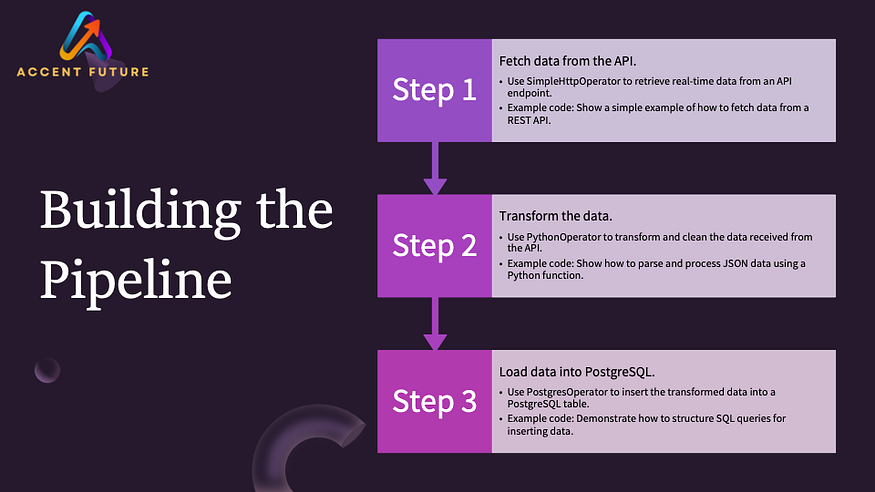

Hands-On: Step-by-Step Pipeline Building

Step 1: Fetch Data from an API

The first step in our real-time data pipeline is to fetch data from an API. We used Airflow’s SimpleHttpOperator to make HTTP GET requests to an external API and retrieve real-time data.

from airflow import DAG
from airflow.providers.http.operators.http import SimpleHttpOperator
from datetime import datetime

default_args = {
‘owner’: ‘airflow’,
‘start_date’: datetime(2023, 1, 1),
‘retries’: 2,
‘retry_delay’: timedelta(minutes=5)
}

dag = DAG(‘api_fetch_pipeline’, default_args=default_args, schedule_interval=‘@hourly’)

fetch_data = SimpleHttpOperator(
task_id=‘fetch_data_from_api’,
http_conn_id=‘api_connection’,
endpoint=‘data/endpoint’,
method=‘GET’,
dag=dag,
)

Here, the SimpleHttpOperator is configured to retrieve data from an external API. Airflow handles this as a task in the DAG that runs periodically, ensuring continuous data retrieval.

Step 2: Transform the Data

Once the data is retrieved, the next step is to clean and transform it using the PythonOperator. In this phase, we parsed the data (in JSON format), applied necessary transformations, and prepared it for insertion into PostgreSQL.

Code Example:

import json
from airflow.operators.python import PythonOperator

def process_data(**kwargs):
ti = kwargs[‘ti’]
api_response = ti.xcom_pull(task_ids=‘fetch_data_from_api’)
data = json.loads(api_response)
# Clean and transform the data
transformed_data = {‘field1’: data[‘key1’], ‘field2’: data[‘key2’]}
return transformed_data

transform_data = PythonOperator(
task_id=‘transform_data’,
python_callable=process_data,
dag=dag,
)

In this function, we use Airflow’s XCom feature to pull the fetched data and pass it through a transformation process.

Step 3: Load Data into PostgreSQL

After transforming the data, the final step is to load it into a PostgreSQL table. We used the PostgresOperator to insert the data into the database.

Code Example:

from airflow.providers.postgres.operators.postgres import PostgresOperator

load_to_postgres = PostgresOperator(
task_id=‘load_data’,
postgres_conn_id=‘postgres_default’,
sql=“””
INSERT INTO data_table (column1, column2) VALUES (%s, %s);
“””,
parameters=(transformed_data[‘field1’], transformed_data[‘field2’]),
dag=dag,
)

This step demonstrates how Airflow automates the process of loading transformed data into PostgreSQL using SQL queries.

Real-World Use Case

During the workshop, we applied this pipeline architecture to a real-world use case. The scenario involved pulling weather data from a public API, transforming it into a format suitable for analysis, and storing it in PostgreSQL for further querying and visualization. This use case illustrated the importance of real-time data for applications like real-time weather monitoring, stock price analysis, or IoT data processing.

Best Practices & Tips

To build efficient and scalable real-time data pipelines, here are a few best practices shared during the workshop:

• Modular Workflow Design: Breaking the pipeline into small, modular tasks ensures easier debugging and flexibility in handling failures.
• Error Handling and Retries: Implement retries for API failures or data validation issues using Airflow’s built-in retry mechanisms.
• Monitoring and Logging: Use Airflow’s logging and monitoring tools to track task execution and diagnose issues in real time.
• Scalability Considerations: Optimize your pipeline to handle large data volumes by leveraging Airflow’s parallel execution capabilities and database optimizations in PostgreSQL.

Q&A Session

The workshop concluded with a lively Q&A session, where participants asked questions about real-world applications, integration challenges, and specific use cases related to their industries. Attendees were encouraged to share their own experiences and use Airflow to tackle their unique data pipeline needs.

Conclusion

Building real-time data pipelines using Apache Airflow and PostgreSQL is essential for industries that rely on timely data insights. This workshop empowered participants to create their own data pipelines by integrating APIs, automating workflows, and storing data efficiently. By mastering these technologies, you can scale your operations, optimize decision-making processes, and unlock the full potential of real-time data.

This hands-on workshop was an excellent opportunity for data engineers and professionals to hone their skills and learn how to create efficient, scalable real-time pipelines. Stay tuned for future workshops to continue mastering the world of data engineering!
